Collisions of glider C2 with glider G

Next: Collisions of glider C2 Up: Collisions of glider C2 Previous: Collisions of glider C2 Contents

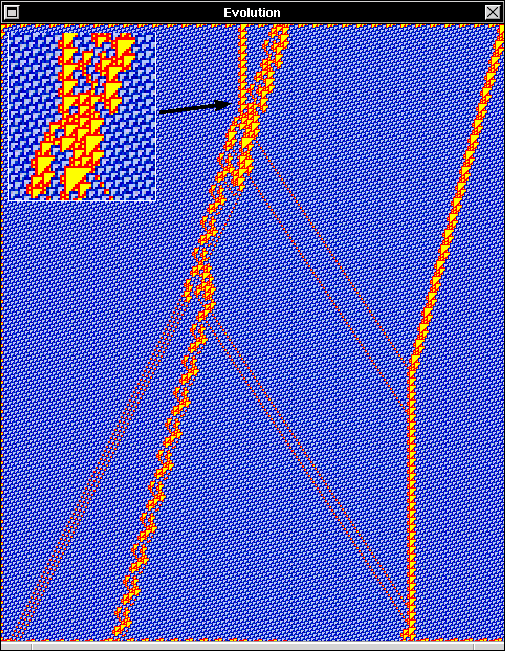

**Figure 4.281:** Collisions of glider C2, C2(p1)(A)-e(p1)-G(p1)(A)=A,D2,Ebar,C1
$\includegraphics[width=4.5in]{images/collisionsC2-11.eps}$

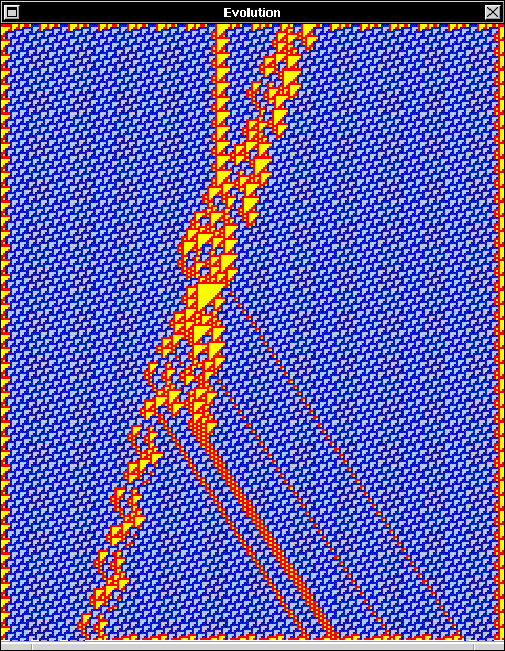

**Figure 4.282:** Collisions of glider C2, C2(p1)(A)-e(p1)-G(p1)(B)=A,A,4A,2A,Ebar
$\includegraphics[width=4.5in]{images/collisionsC2-12.eps}$

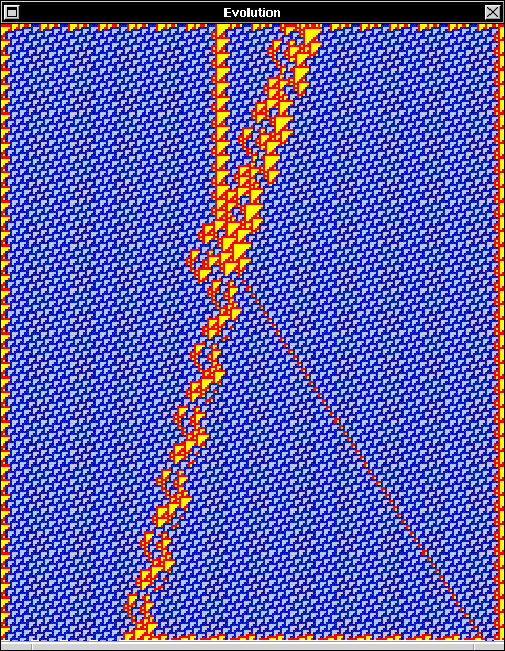

**Figure 4.283:** Collisions of glider C2, C2(p1)(A)-e(p1)-G(p1)(C)=A,A,F
$\includegraphics[width=4.5in]{images/collisionsC2-13.eps}$

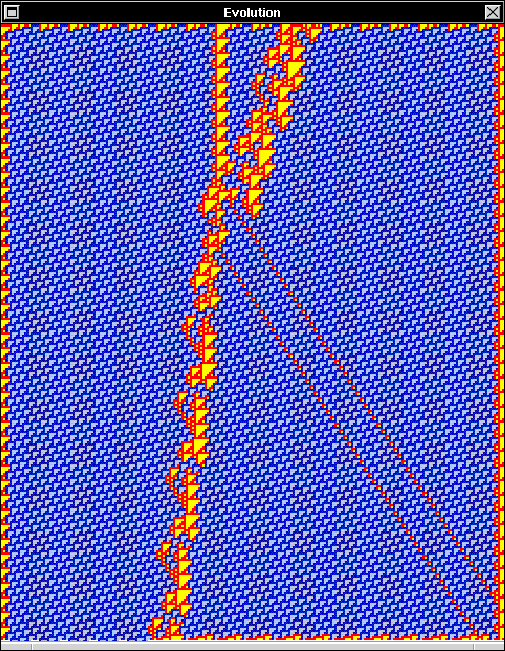

**Figure 4.284:** Collisions of glider C2, C2(p1)(A)-e(p1)-G(p1)(D)=3A,Bbar,F
$\includegraphics[width=4.5in]{images/collisionsC2-14.eps}$

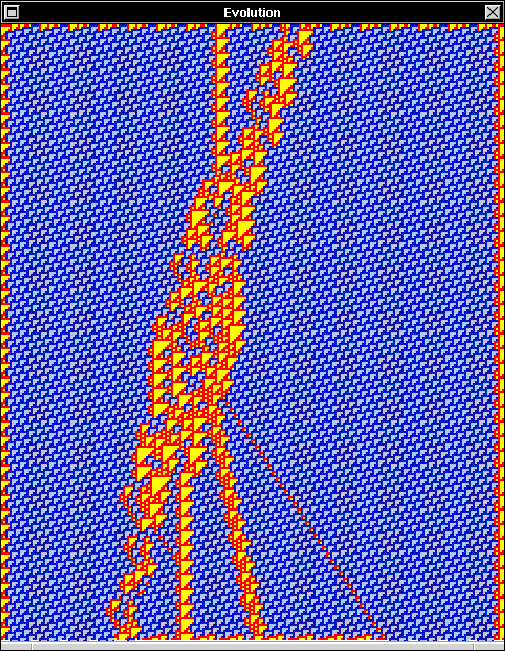

**Figure 4.285:** Collisions of glider C2, C2(p1)(A)-e(p1)-G(p1)(E)=A,A,3B,A,A,Ebar
$\includegraphics[width=4.5in]{images/collisionsC2-15.eps}$

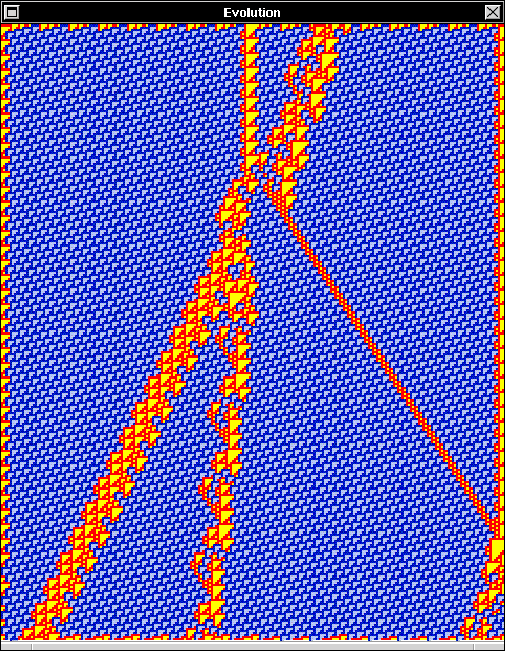

**Figure 4.286:** Collisions of glider C2, C2(p1)(A)-e(p1)-G(p1)(F)=3B,C2
$\includegraphics[width=4.5in]{images/collisionsC2-16.eps}$

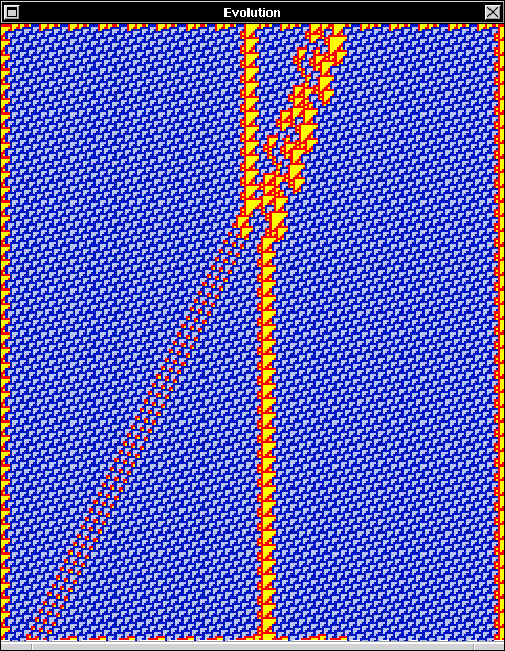

**Figure 4.287:** Collisions of glider C2, C2(p1)(A)-e(p1)-G(p1)(G)=A,Ebar
$\includegraphics[width=4.5in]{images/collisionsC2-17.eps}$

ice 2002-01-17
