Tilings and phases of glider Bbar8

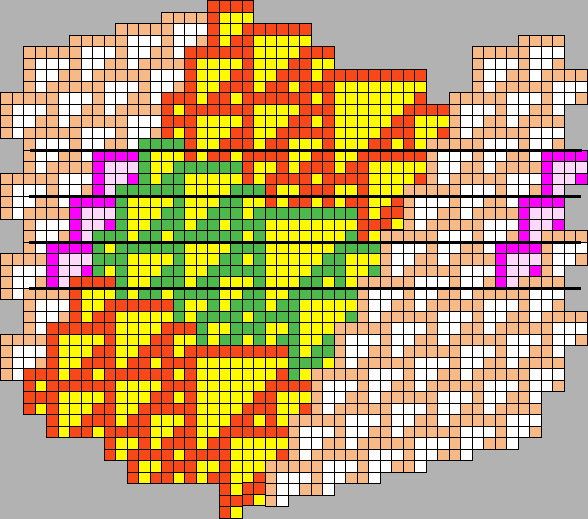

Figure 3.12: Phases of glider Bbar8
\includegraphics[width=5.2in]{images/glider-Bbar8.eps}


Table 3.6: Lines to form glider Bbar8
line cells phase
111110001011011110011001111111000100110 39 1
100010011111110010111011000001001101111 39 2
100110110000010111101111000011011111000 39 3
101111110000111100111001000111110001001 39 4
111110000100011001011010110011000100110 39 1
100010001100111011111111110111001101111 39 2
100110011101101110000000011101011111000 39 3
101110110111111010000000110111110001001 39 4
111110111111000011100000011111000100110 39 1
100011100001000110100000110001001101111 39 2
100110100011001111100001110011011111000 39 3
101111100111011000100011010111110001001 39 4


Twenty five tilings to form glider Bbar8.


Table 3.7: Tilings to form glider Bbar8
no. tilings tiling phase
12 T1 -
4 T2 2 alpha, 2 beta
3 T3 1 alpha, 2 beta
3 T4 3 alpha
2 T5 1 alpha, 1 beta
1 T8 alpha

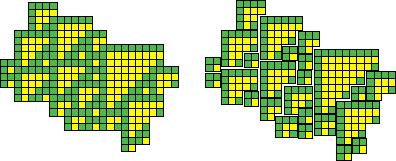

Figure 3.13: Tilings of glider Bbar8
\includegraphics[width=3.5in]{images/glider-Bbar8-2.eps}

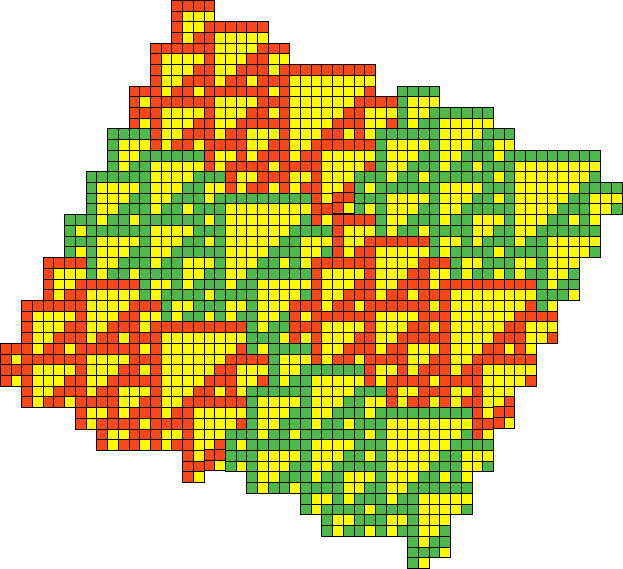

Figure 3.14: Glider Bbar8 covering the evolution space
\includegraphics[width=5.5in]{images/glider-Bbar8-3.eps}
