Tilings and phases of glider F

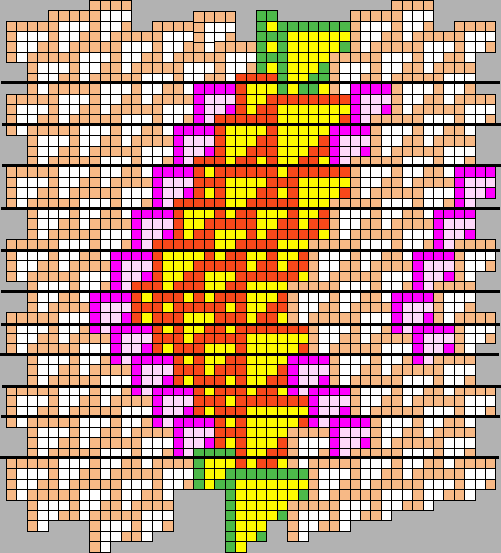

**Figure 3.40:** Phases of glider F
$\includegraphics[width=4.5in]{images/glider-F.eps}$

Table 3.22: Lines to form glider F

line	cells	phase
111110001011010	15	1
100010011111111	15	2
100110110000000	15	3
101111110000001	15	4
111110000100000	15	1
100010001100001	15	2
100110011100011	15	3
101110110100110	15	4
11111011111101111111000100110	29	1
10001110000111000001001101111	29	2
10011010001101000011011111000	29	3
10111110011111000111110001001	29	4
11111000101100010011000100110	29	1
10001001111100110111001101111	29	2
10011011000101111101011111000	29	3
10111111001111000111110001001	29	4
11111000010110010011000100110	29	1
10001000111110110111001101111	29	2
10011001100011111101011111000	29	3
10111011100110000111110001001	29	4
11111011101011100011000100110	29	1
10001110111110100111001101111	29	2
10011011100011101101011111000	29	3
10111110100110111111110001001	29	4
11111010011011111111000100110	29	1
10001110111110000001001101111	29	2
10011011100010000011011111000	29	3
10111110100110000111110001001	29	4
111110100110000	15	1
100011101110001	15	2
100110111010011	15	3
101111101110110	15	4
111110111011010	15	1
100011101111111	15	2
100110111000000	15	3
101111101000001	15	4
111110100000110	15	1
100011100001111	15	2
100110100011000	15	3
101111100111001	15	4

Fourty three tiles to form glider F.

Table 3.23: Tilings to form glider F

no. tilings	tiling	phase
26	T1	-
1	T2	1 beta
8	T3	3 alpha, 5 beta
4	T4	3 alpha, 1 beta
1	T5	1 beta
2	T6	2 alpha
1	T7	1 beta

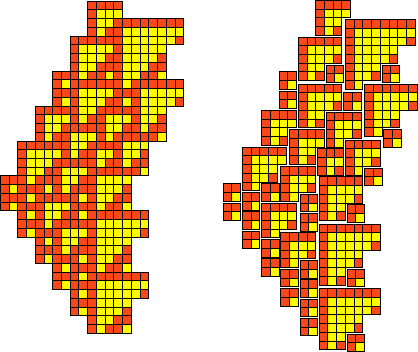

**Figure 3.41:** Tilings of glider F
$\includegraphics[width=3.7in]{images/glider-F-2.eps}$

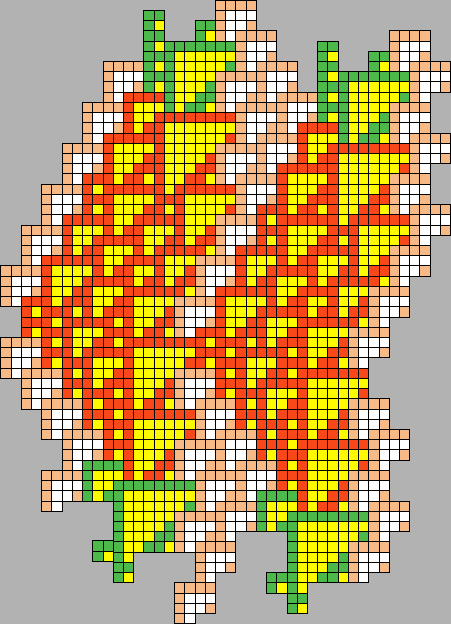

**Figure 3.42:** Glider F covering the evolution space
$\includegraphics[width=4in]{images/glider-F-3.eps}$

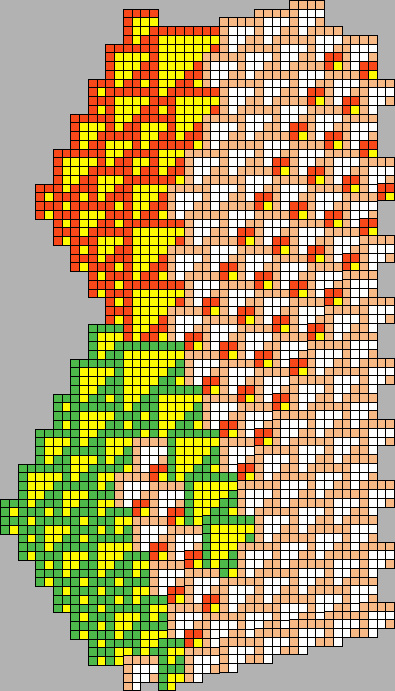

**Figure 3.43:** Extendible T5 by an T1 in glider F
$\includegraphics[width=3.5in]{images/glider-F-4.eps}$
