Collisions of glider Bbar8 with glider F

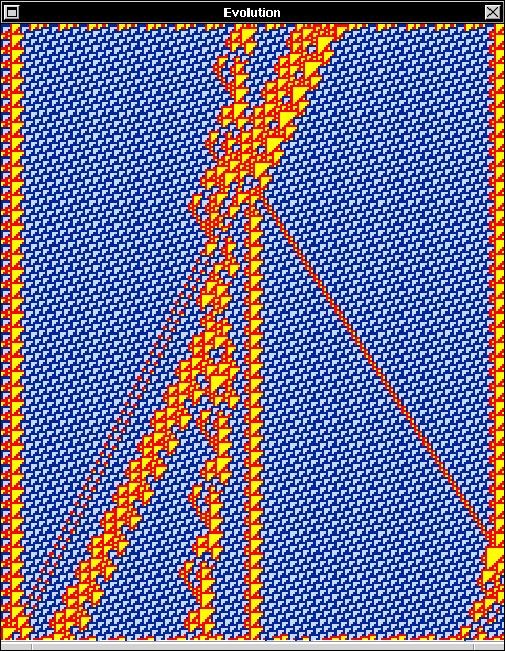

Figure 4.197: Collisions of glider Bbar8, F(p1)(A)-e(p1)-Bbar8(p1)(A)=2A,C2,2B,Bbar,F
\includegraphics[width=4.5in]{images/collisionsBbar8-31.eps}

Figure 4.198: Collisions of glider Bbar8, F(p1)(A)-e(p1)-Bbar8(p1)(B)=2A,A,A,Ebar,C1
\includegraphics[width=4.5in]{images/collisionsBbar8-32.eps}

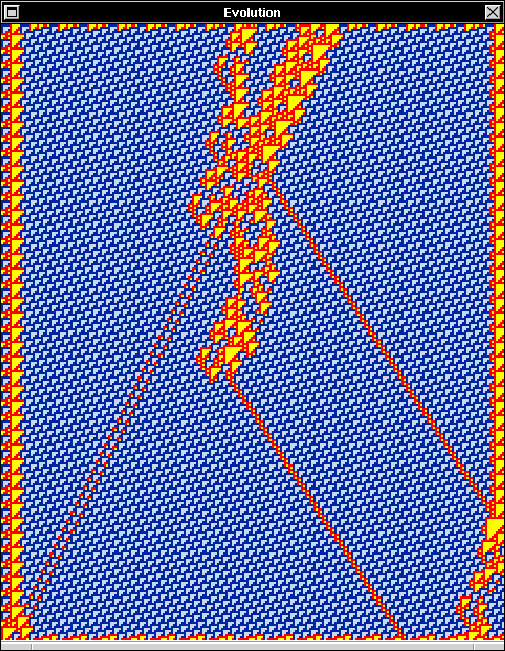

Figure 4.199: Collisions of glider Bbar8, F(p1)(A)-e(p1)-Bbar8(p1)(C)=2A,2B,2A
\includegraphics[width=4.5in]{images/collisionsBbar8-33.eps}

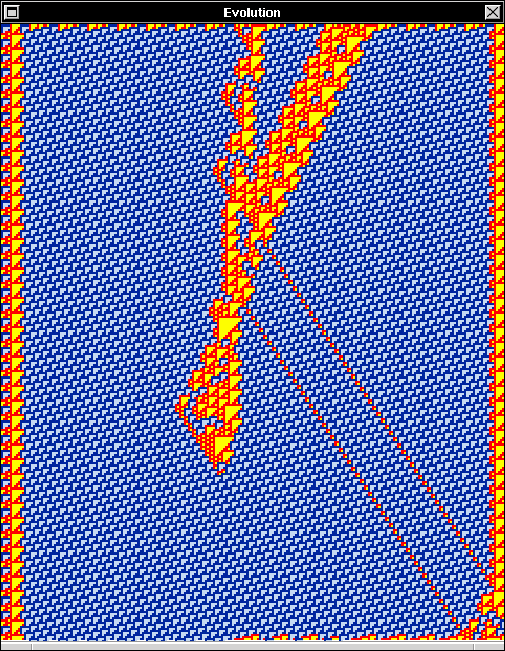

Figure 4.200: Collisions of glider Bbar8, F(p1)(G)-e(p1)-Bbar8(p1)(A)=A,A
\includegraphics[width=4.5in]{images/collisionsBbar8-34.eps}

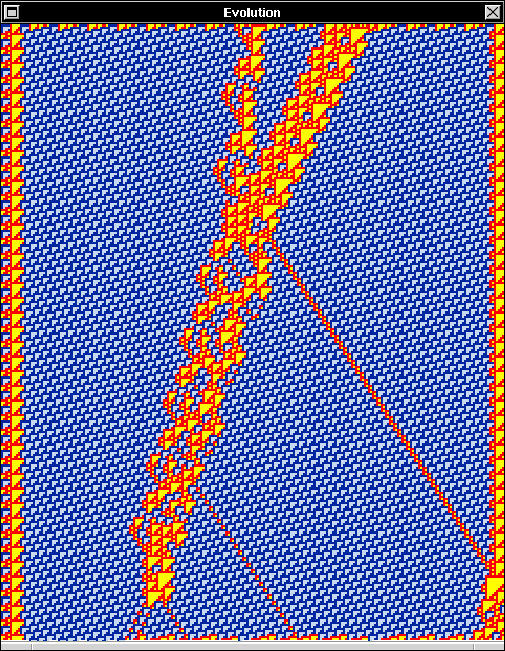

Figure 4.201: Collisions of glider Bbar8, F(p1)(G)-e(p1)-Bbar8(p1)(B)=2A,A,2B,A
\includegraphics[width=4.5in]{images/collisionsBbar8-35.eps}

Figure 4.202: Collisions of glider Bbar8, F(p1)(G)-e(p1)-Bbar8(p1)(C)=B,B,A,4B
\includegraphics[width=4.5in]{images/collisionsBbar8-36.eps}

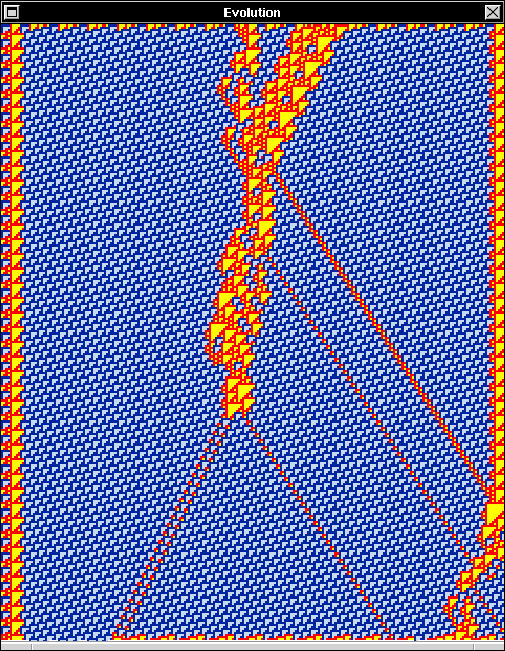

Figure 4.203: Collisions of glider Bbar8, F(p1)(H)-e(p1)-Bbar8(p1)(A)=2A,A,2B,A
\includegraphics[width=4.5in]{images/collisionsBbar8-37.eps}

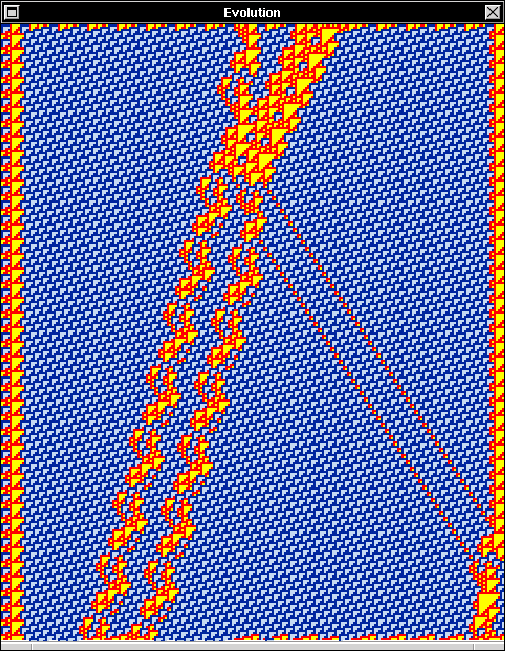

Figure 4.204: Collisions of glider Bbar8, F(p1)(H)-e(p1)-Bbar8(p1)(B)=Ebar,A,A,Ebar
\includegraphics[width=4.5in]{images/collisionsBbar8-38.eps}

Figure 4.205: Collisions of glider Bbar8, F(p1)(H)-e(p1)-Bbar8(p1)(C)=A,A,A,2B,A
\includegraphics[width=4.5in]{images/collisionsBbar8-39.eps}

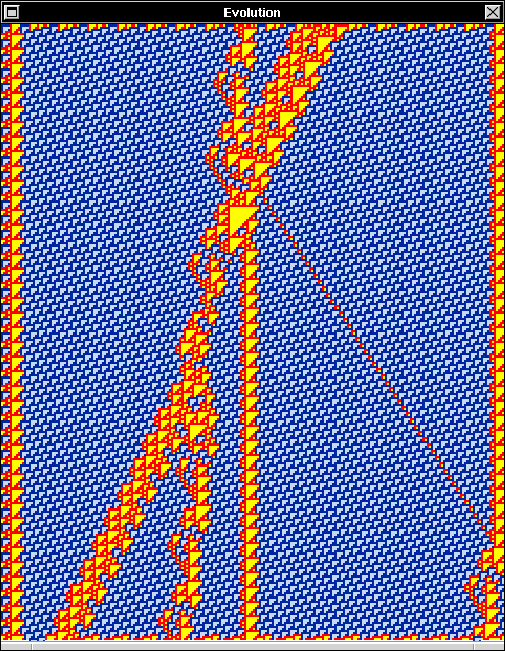

Figure 4.206: Collisions of glider Bbar8, F(p1)(A2)-e(p1)-Bbar8(p1)(A)=A,C3,Bbar,F
\includegraphics[width=4.5in]{images/collisionsBbar8-40.eps}

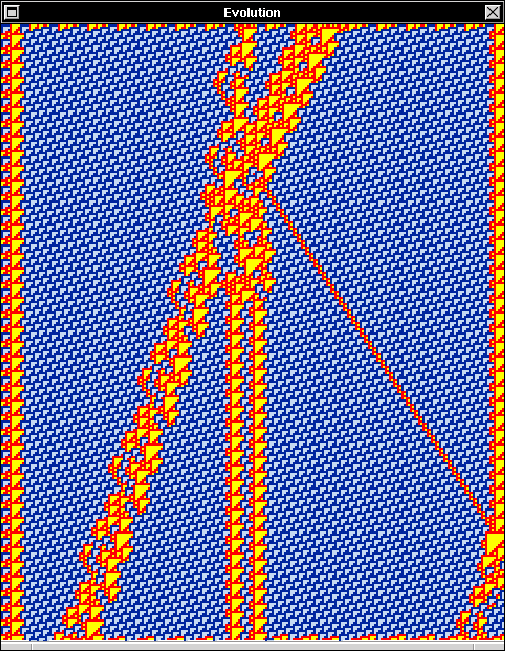

Figure 4.207: Collisions of glider Bbar8, F(p1)(A2)-e(p1)-Bbar8(p1)(B)=2A,G,C1,C1
\includegraphics[width=4.5in]{images/collisionsBbar8-41.eps}

Figure 4.208: Collisions of glider Bbar8, F(p1)(A2)-e(p1)-Bbar8(p1)(C)=2A,A,B
\includegraphics[width=4.5in]{images/collisionsBbar8-42.eps}
