Tilings and phases of glider D1

Figure 3.24: Phases of glider D1
\includegraphics[width=4in]{images/glider-D1.eps}


Table 3.14: Lines to form glider D1
line cells phase
11111000010 11 1
10001000111 11 2
10011001100 11 3
10111011101 11 4
1111101110111111000100110 25 1
1000111011100001001101111 25 2
1001101110100011011111000 25 3
1011111011100111110001001 25 4
11111011100 11 1
10001110101 11 2
10011011111 11 3
10111110000 11 4


Eleven tilings to form glider D1.


Table 3.15: Tilings to form glider D1
no. tilings tiling phase
8 T1 -
1 T2 1 beta
2 T4 1 alpha, 1 beta

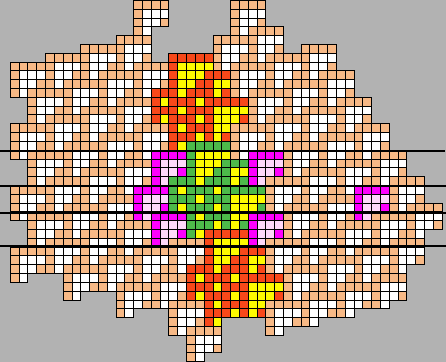

Figure 3.25: Tiles of glider D1
\includegraphics[width=1.7in]{images/glider-D1-2.eps}

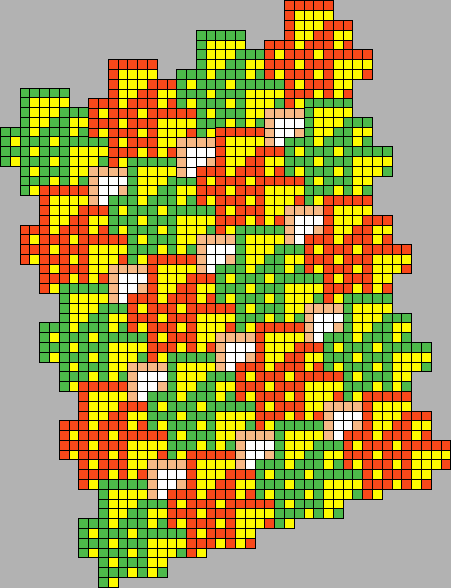

Figure 3.26: Glider D1 covering the evolution space, first case
\includegraphics[width=3.5in]{images/glider-D1-3.eps}

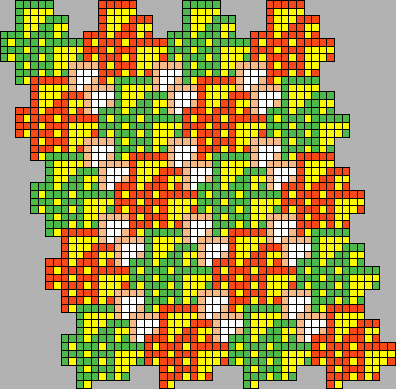

Figure 3.27: Glider D1 covering the evolution space, second case
\includegraphics[width=4in]{images/glider-D1-4.eps}
