Tilings and phases of glider D2

Figure 3.28: Phases of glider D2

Table 3.16: Lines to form glider D2

line	cells	phase
1111101011000100110	19	1
1000111111001101111	19	2
1001100001011111000	19	3
1011100011110001001	19	4
1111101001100100110	19	1
1000111011101101111	19	2
1001101110111111000	19	3
1011111011100001001	19	4
1111101110000100110	19	1
1000111010001101111	19	2
1001101110011111000	19	3
1011111010110001001	19	4

Ten tilings to form glider D2.

Table 3.17: Tilings to form glider D2

no. tilings	tiling	phase
7	T1	-
1	T2	1 beta
2	T4	1 alpha, 1 beta

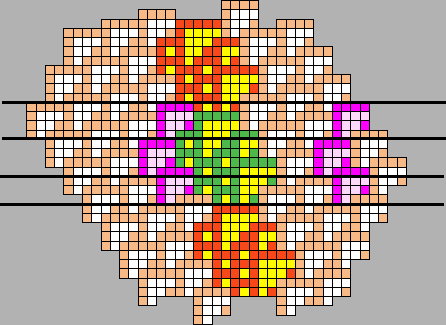

Figure 3.29: Tilings of glider D2

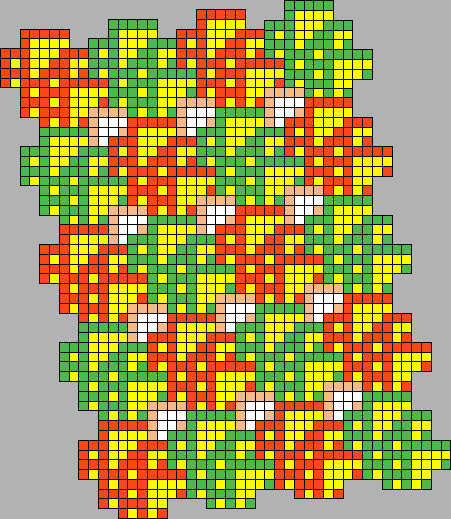

Figure 3.30: Glider D2 covering the evolution space, first case

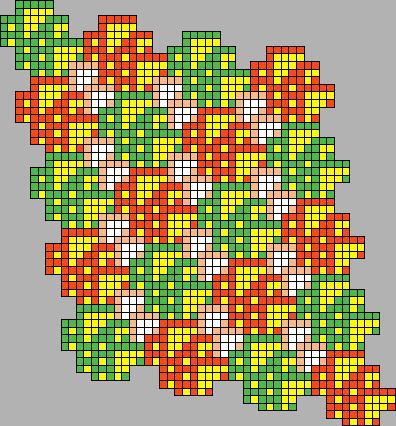

Figure 3.31: Glider D2 covering the evolution space, second case
