Tilings and phases of glider E

Figure 3.32: Phases of glider E
\includegraphics[width=4.7in]{images/glider-E.eps}


Table 3.18: Lines to form glider E
line cells phase
1111100000000100110 19 1
1000100000001101111 19 2
1001100000011111000 19 3
1011100000110001001 19 4
1111101000011100110 19 1
1000111000110101111 19 2
1001101001111111000 19 3
1011111011000001001 19 4
1111101100000100110 19 1
1000111100001101111 19 2
1001100100011111000 19 3
1011101100110001001 19 4
1111101111011100110 19 1
1000111001110101111 19 2
1001101011011111000 19 3
1011111111110001001 19 4


Eleven tilings to form glider E.


Table 3.19: Tilings to form glider E
no. tilings tiling phase
7 T1 -
2 T2 2 beta
1 T5 1 beta
1 T8 1 alpha

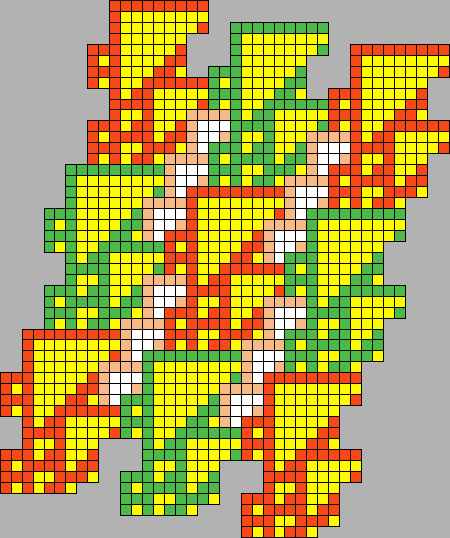

Figure 3.33: Tilings of glider E
\includegraphics[width=2in]{images/glider-E-2.eps}

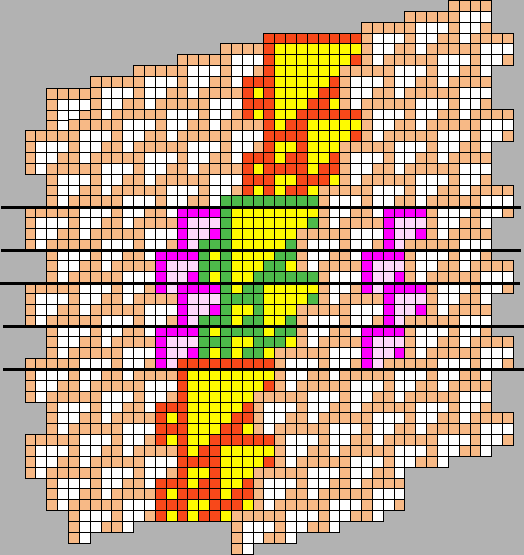

Figure 3.34: Glider E covering the evolution space
\includegraphics[width=4in]{images/glider-E-3.eps}

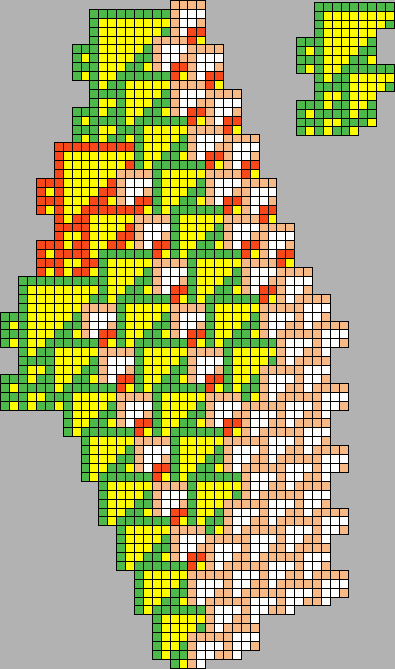

Figure 3.35: Extendible T5 by an T1 in glider E
\includegraphics[width=3.5in]{images/glider-E-4.eps}
